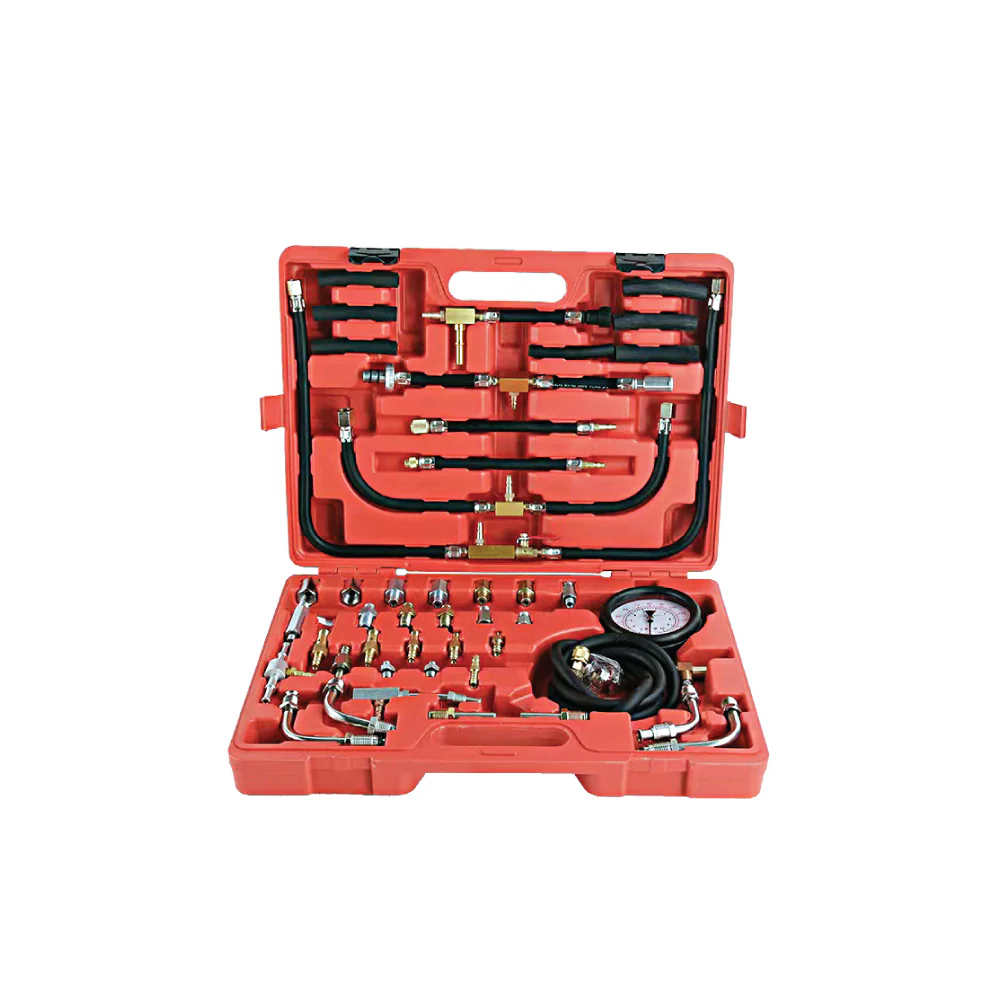

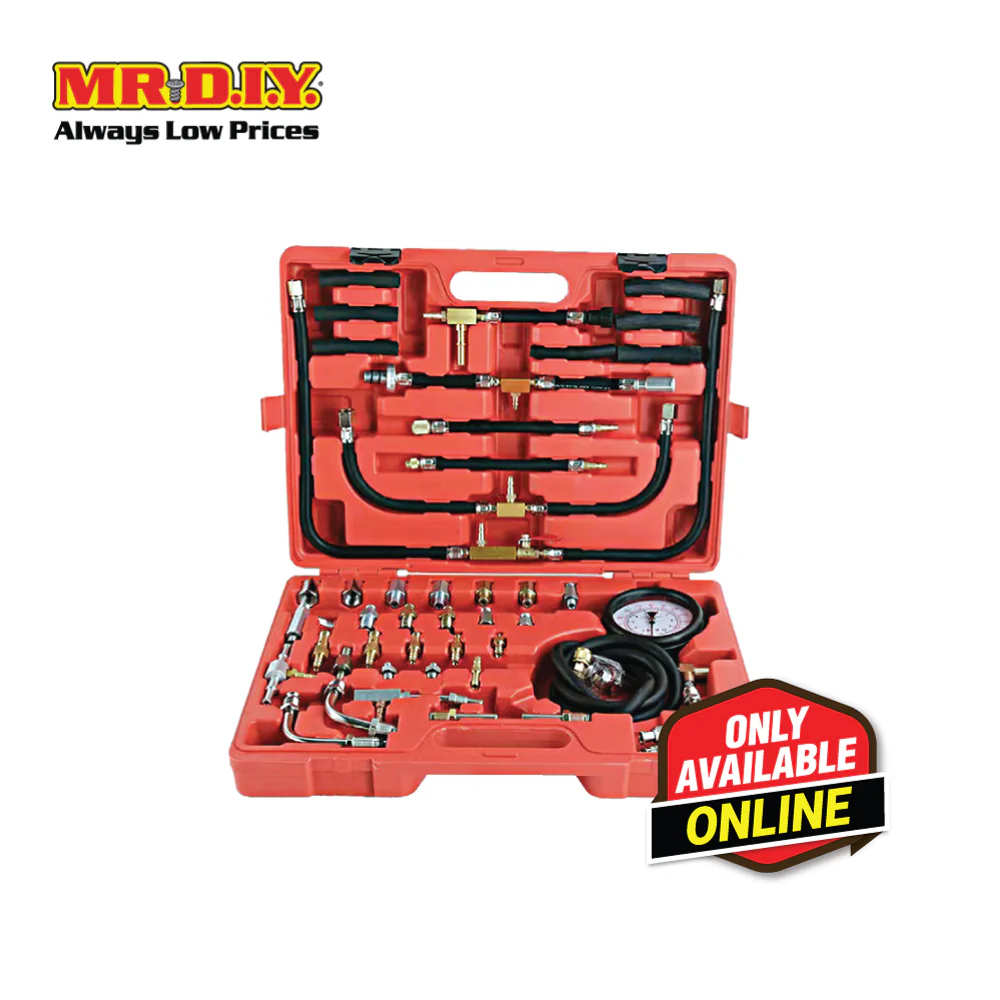

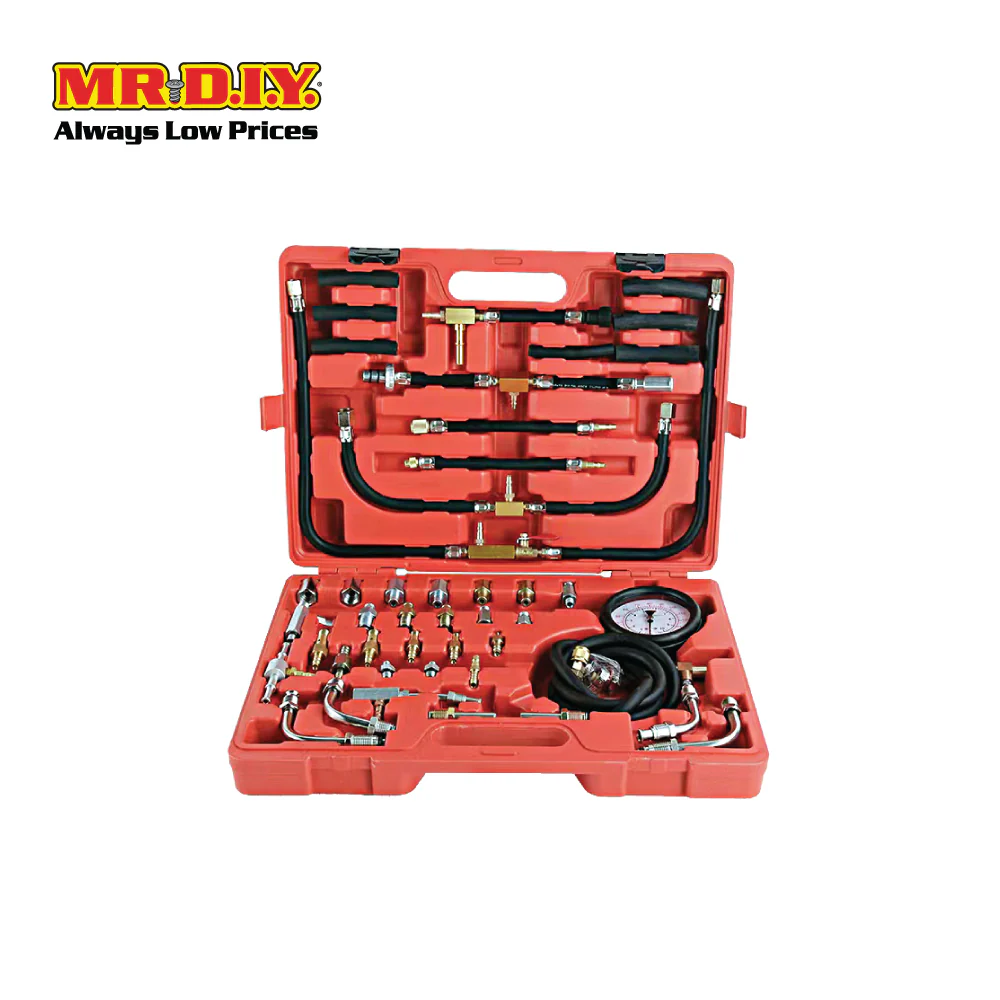

Fuel Injection Pressure Test Kit JF-7005

Fuel Injection Pressure Test Kit JF-700

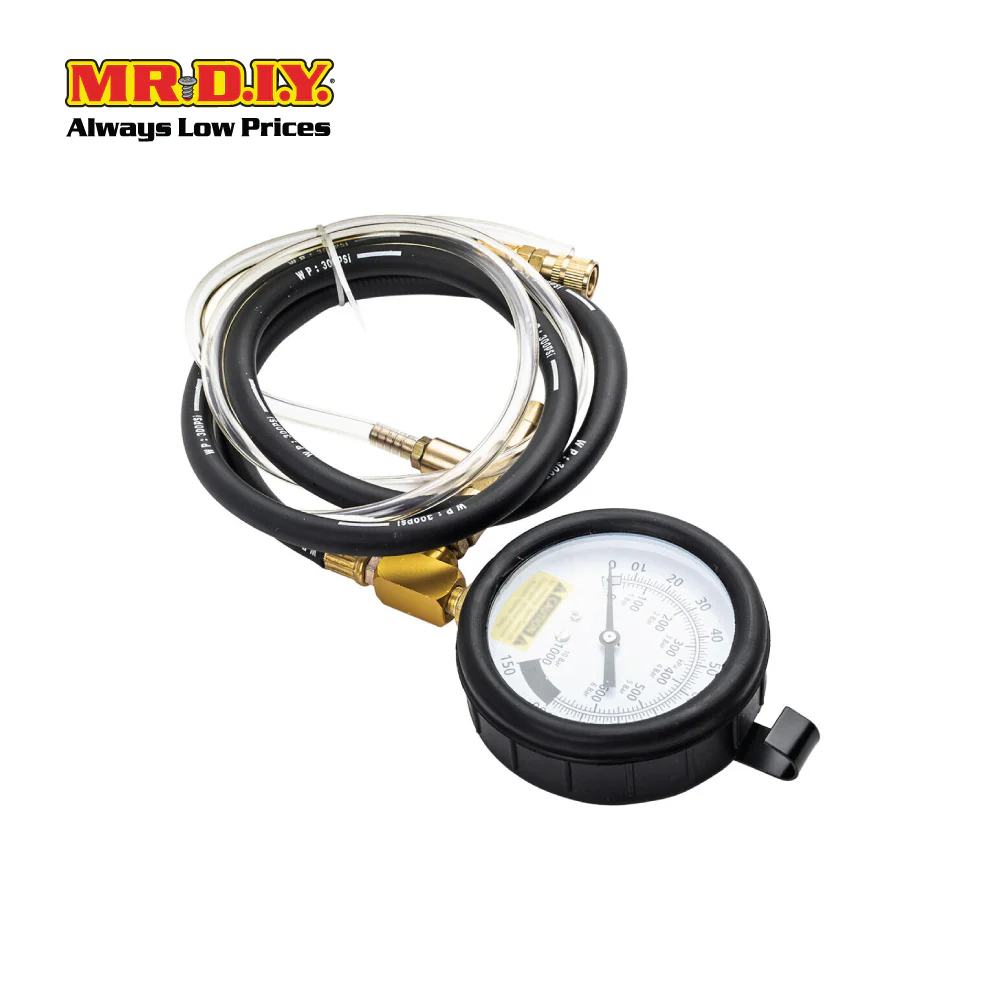

- Fitted with 90mm gauge having two scales(psi and bar), reading from 0~140psi and 0~10bar.
- Designed with a relief valve and 6 feet of tubing to relieve the pressure and fuel safely.
- The fuel pressure gauge kit equipped with pressure release valve makes it safe and fast to use.
- Comes with adapters, hoses& fittings, suitable for most cars and trucks and fuel injection systems.

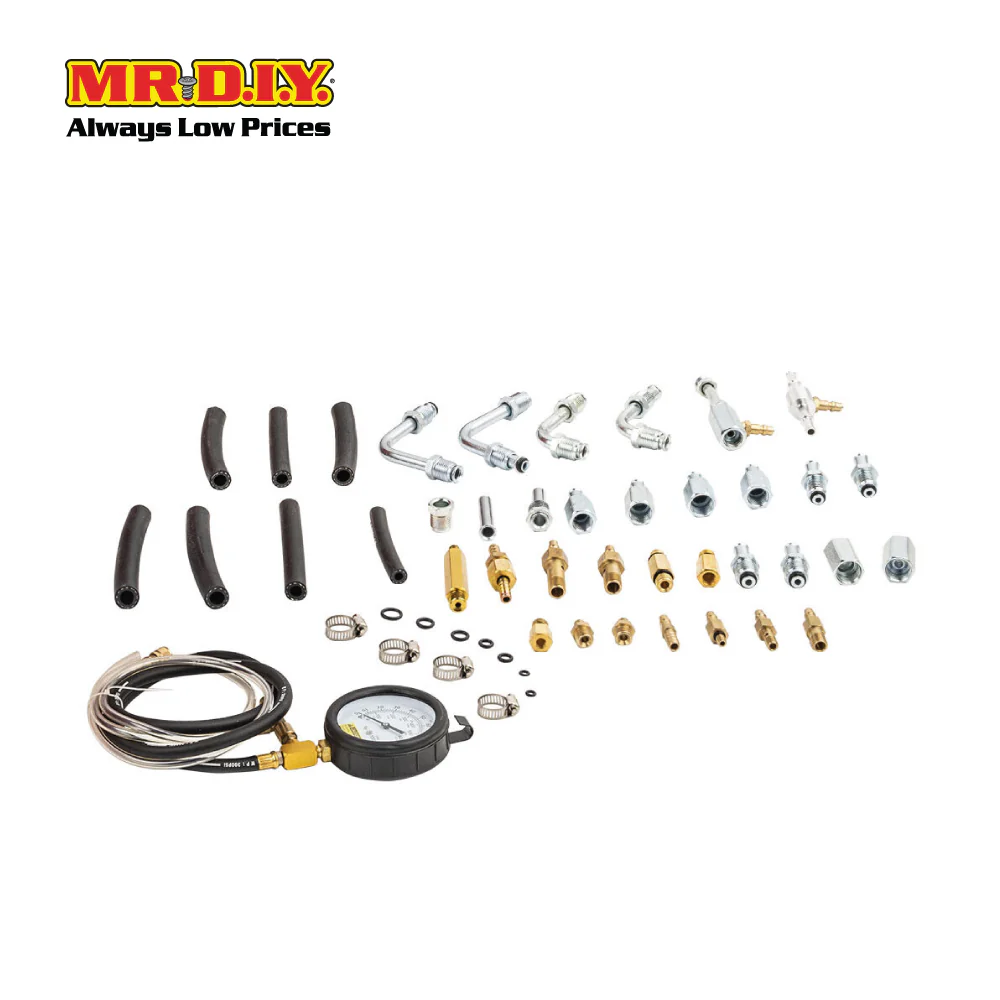

Tools Included:

Description	Dimensions
3" Cut Hose - 3/6" I.D.	3 pc
Adapter-Ferd CFI	1 pc
2" Cut Hose - 1/4" I.D.	1 pc
3" Cut Hose - 5/16" I.D.	3 pc
Adapter-Ferd EFI	1 pc
Adapter for Standard Schrader Valve	1 pc
Adapter for Small Schrader Valve (Ford)	1 pc
Connecting Hose and Valve Assembly for Bosch CIS	1 pc
Connecting Hose Assembly for GM TBI	1 pc
Quick Coupler Plug with 1/4" Hose Barb	1 pc
Bent Tubing with 3/8 Inverted Flare Nut	2 pc
Adapter-Female M16x1.5 One End and 3/8 Tube Fitting Other End	2 pc
Adapter-Female M14x1.5 One End and 3/8 Tube Fitting Other End	2 pc
Adapter-Uunio-5/8-18 and M16x1.5	2 pc
Adapter-M8x1.0 Female and M12x1.5 Male	1 pc
Adapter-M10x1.0 Female and M12x1.5 Male	1 pc
Volvo Adapter,14mm LH-Jetronic	1 pc
Adapter for Geo Storm and Isuzu (lanzu I-Tec System)	1 pc
Manifold with Quick Coupler Plug	1 pc
Adapter M8X1.0 Male-M12x1.5 Male with O'ring	2 pc
Adapter M10x1.0 Male-M12x1.5 Male with O'ring	1 pc
Adapter M8x1.0 Male-M12x1.5 Male with O'ring	1 pc
Straight Tubing with 3/8 Inverted Flare Nut	2 pc
Bent Tubing with 3/8 Inverted Flare Nut & M16x1.5 Nut & O'ring	2 pc
Adapter-Male 16x1.5 & 3/8 Tube Fitting & O'ring	2 pc
Adapter-Male M14x1.5 & 3/8 Tube Fitting & O'ring	2 pc
Adapter-Banjo Bolt M6x1.0 with O'ring	1 pc
Adapter-Banjo Bolt M8x1.0 with Nylotron Washer	1 pc
Adapter-Banjo Bolt M10x1.0 with Nylotron Washer	1 pc
Adapter-Banjo Bolt M12x1.25 with Nylotron Washer	1 pc
Adapter-Banjo Bolt M12x1.5 with Nylotron Washer	1 pc
Gauge (4")43" Hose, Valve,44" Tubing Assembly (140psi)	1 pc
